Rippa RS20 Skid Loader

(0 review)
  • Joystick control
  • Hydraulic pump (type)
  • Operating weight (kg)
  • Bucket capacity (m³)
  • Rated payload (kg) (safe load)
  • Max. payload (kg)
  • Travel speed low/high (km/h)
  • Gradeability (%)
  • Ground pressure (kPa)
  • Max. dumping height (mm)
  • Max. lifting height (mm)
  • Max. dumping reach (mm)
  • Min. ground clearance (mm)
  • Engine make
  • Engine model
  • Max. power (hp)
  • Max. power (kW)
  • Max. engine speed (rpm)
  • Displacement (L)
  • Number of cylinders
  • Cooling
  • Fuel type
  • Fuel grade
  • Theoretical fuel consumption (L/h)
  • Cab (equipment)
  • Quick coupler
  • 4-in-1 bucket
  • Pallet forks
  • Sweeper
  • Hydraulic breaker
  • Transport length with bucket (mm)
  • Transport length without bucket (mm)
  • Transport width (mm)
  • Transport height (mm)
  • Bucket width (mm)
  • Max. main pump flow (L/min)
  • Control valve
Special offer

34,590.00 € 29,067.23 € excl. VAT

You save 5,522.77 € per machine.

  • Free shipping within the EU
  • For a limited time only, while stocks last
Add to wishlist
Price
29,067.23 € 29,067.23 € (Tax excluded)

Terms and Conditions
Shipping: 3-10 days
Joystick control Standard
Hydraulic pump (type) 4-pump system
Operating weight (kg) 4064
Bucket capacity (m³) 0.4
Rated payload (kg) (safe load) 1050
Max. payload (kg) 2000
Travel speed low/high (km/h) 0-5/0-10
Gradeability (%) 0.25
Ground pressure (kPa) 52.16
Max. dumping height (mm) 2250
Max. lifting height (mm) 3750
Max. dumping reach (mm) 1360
Min. ground clearance (mm) 230
Engine make Kubota
Engine model V2607
Max. power (hp) 48.3
Max. power (kW) 35.5
Max. engine speed (rpm) 2200
Displacement (L) 2.615
Number of cylinders 4
Cooling Water-cooled
Fuel type Diesel
Fuel grade Diesel no. 0 / no. -10
Theoretical fuel consumption (L/h) 9.7
Cab (equipment) Standard
Quick coupler Standard
4-in-1 bucket Option
Pallet forks Option
Sweeper Option
Hydraulic breaker Option
Transport length with bucket (mm) 3820
Transport length without bucket (mm) 3040
Transport width (mm) 1850
Transport height (mm) 2460
Bucket width (mm) 1850
Max. main pump flow (L/min) 99+99+32.8+99
Control valve Load-sensing control valve
Joystick control: Standard
Hydraulic pump (type): 4-pump system
Operating weight (kg): 4064
Bucket capacity (m³): 0.4
Rated payload (kg) (safe load): 1050
Max. payload (kg): 2000
Travel speed low/high (km/h): 0-5/0-10
Gradeability (%): 0.25
Ground pressure (kPa): 52.16
Max. dumping height (mm): 2250
Max. lifting height (mm): 3750
Max. dumping reach (mm): 1360
Min. ground clearance (mm): 230
Engine make: Kubota
Engine model: V2607
Max. power (hp): 48.3
Max. power (kW): 35.5
Max. engine speed (rpm): 2200
Displacement (L): 2.615
Number of cylinders: 4
Cooling: Water-cooled
Fuel type: Diesel
Fuel grade: Diesel no. 0 / no. -10
Theoretical fuel consumption (L/h): 9.7
Cab (equipment): Standard
Quick coupler: Standard
4-in-1 bucket: Option
Pallet forks: Option
Sweeper: Option
Hydraulic breaker: Option
Transport length with bucket (mm): 3820
Transport length without bucket (mm): 3040
Transport width (mm): 1850
Transport height (mm): 2460
Bucket width (mm): 1850
Max. main pump flow (L/min): 99+99+32.8+99
Control valve: Load-sensing control valve

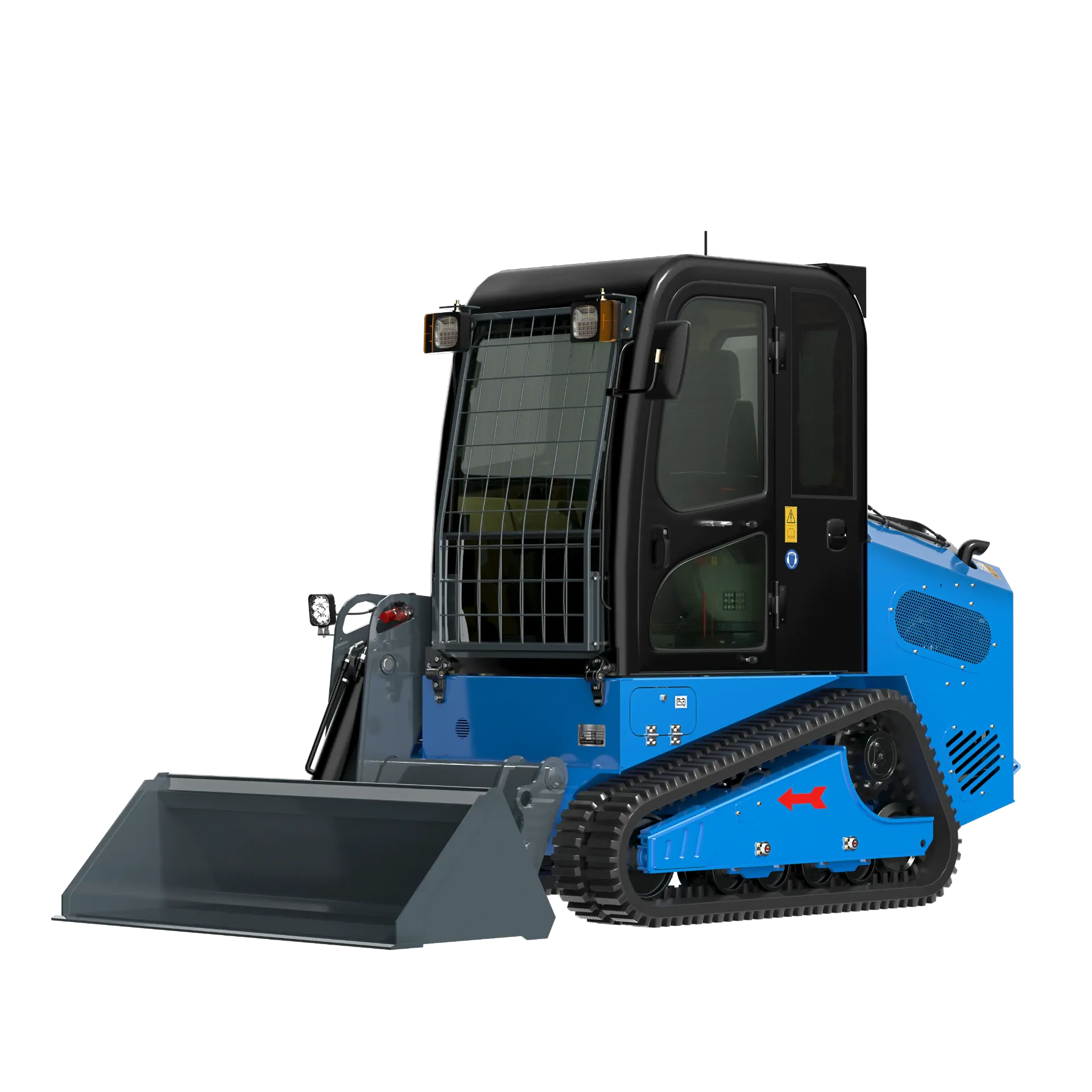

Rippa RS20: the large skid loader with 1,050 kg rated payload

The Rippa RS20 is the most powerful skid loader in the Rippa range: 4,064 kg operating weight, 1,050 kg rated payload and 3.75 m lifting height. The water-cooled Kubota V2607 four-cylinder engine delivers 48.3 hp (35.5 kW), and control is via a load-sensing control valve. Cab and quick coupler are standard, and at up to 10 km/h the RS20 moves quickly around large building sites and yards.

The RS20 at a glance

  • Loading and lifting: 1,050 kg rated payload, up to 2,000 kg payload, 3.75 m lifting height and 2.25 m dump height
  • Engine: Kubota V2607 with 4 cylinders and 2.6 l displacement, water-cooled, 48.3 hp (35.5 kW) at 2,200 rpm
  • Hydraulics: load-sensing control valve, flow rates of 99 + 99 + 32.8 + 99 l/min according to the data sheet
  • Travel: two travel speeds up to 10 km/h, 25% gradeability, 230 mm ground clearance
  • Equipment: cab and quick coupler as standard, bucket with 0.4 m³ and 1,850 mm width
  • Transport dimensions: 3,820 mm long with bucket, 1,850 mm wide and 2,460 mm high

You will find all technical data above under “Specifications”.

The RS20 moves large quantities of soil, gravel and bulk material, loads lorries and skips with sides up to 2.25 m high and lifts loads up to 3.75 m. With pallet forks it stacks heavy pallets, with the sweeper it cleans large areas, and with the 4-in-1 bucket it levels, grabs and loads with a single attachment. For demolition work there is a hydraulic breaker.

With 1,050 kg rated payload and up to 2,000 kg payload, the RS20 lifts more than three times as much as our compact skid loaders. The 0.4 m³ bucket fills trailers and skips in just a few loading cycles, and its 1.36 m dumping reach lets you get to areas further inside the load bed.

The four-cylinder Kubota diesel with 2.6 litres displacement delivers 48.3 hp at 2,200 rpm and is water-cooled. The load-sensing hydraulics adapt the flow to demand, so that travelling and working run smoothly at the same time. Spare parts for the engine and hydraulics can be found under spare parts for the RS20.

The RS20 data sheet lists a 4-in-1 bucket, pallet forks, a sweeper and a hydraulic breaker as options. Thanks to the standard quick coupler, you change them in a few minutes. We clarify which attachment suits your application in your personal quote.

The enclosed cab protects you from wind, rain and dust, so you can work comfortably all year round. With 230 mm ground clearance and up to 10 km/h, the RS20 makes good progress even on uneven terrain.

We keep common spare and wear parts for the RS20 in stock in Europe. Maintenance is easiest at your Rippa partner dealer – then it is documented straight away. In the Rippa Owners Club you register your machine and collect points for spare parts and maintenance.

Use “Request a quote” to receive a personal quote for the RS20, free of charge and without obligation. Alternatively, reserve it via Click & Collect for a 300 € deposit, which is credited in full against the purchase price. You collect it from a partner dealer near you and receive a briefing. Within the EU we deliver in 3–10 days, and the machine comes with a 24-month warranty from handover.

Do you need a smaller, narrower machine? Then take a look at the RS07 with a width of 1,000 mm and a cab, or the RS06 PRO on rubber tracks. You can compare all models under Rippa skid loaders and get personal advice via the contact form or on WhatsApp.
